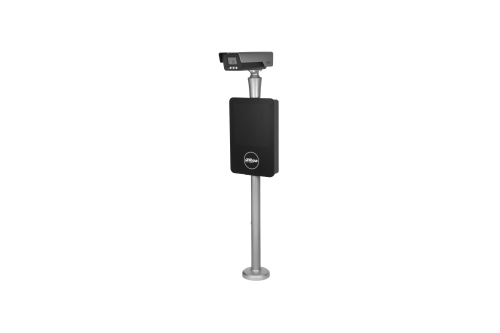

DHI-IPMECS-2234-IZ

Camera
1. Image Sensor: 1/1.8" CMOS
2. Focal Length: 2.7 mm–12 mm Motorized
3. Image Resolution: 2688 × 1520
4. Illuminator: Dual Illuminators（850nm IR& warm light）
5. Electronic Shutter Speed: Auto/Manual 1/25s~1/10,000s
6. ROM: 4GB RAM: 2GB
7. Allowlist: 110,000; Blocklist: 110,000
8. Port: 1 Audio Output, 1 Network Port, Alarm Input: 3 optocoupler input (wet node on-off value: 5 V), Alarm Output: 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers, RS-485: 2, 1 Reset Button
9. Support intelligent defogging function
10. Support HLC, BLC, White Balance, Digital Detail Enhancement, OSD Overlay
11. Support recognize vehicle types, vehicle signs, vehicle color, vehicle plate, vehicle without plate
12. Bult-in TF card port, supports 16 G, 32 G, 128 G, 256 G
13. Power Supply: AC110~230V, 70W MAX
14. Protection: IP54
15. Certifications: CE; UKCA
Display
1. Dimensions: 480.0 mm × 320.0 mm × 82.0 mm (18.90" × 12.60" × 3.23")
2. Display Content: Displays license plate information, time, QR code, custom information, etc.
3. Pixels Configuration: 1R1PG
